Key Features
- Language support
- Built-in report generator
- Assign attributes to several objects with one mouse click
- Alias screens save development time
- Animated labels
- Action menus for fast navigation
- Resistive touch for reliable operation
- Login and audit trail safeguard operations
- Truly open platform
- Remote access via web server
Technical Specs
- Display Colors: TFT-LCD 64k LED backlight
- Processor: ARM9 (400 MHz)
- Main Memory: 128 MB (DDR2)
- Application Memory: 80 MB
- Realtime Clock
- Ethernet (shielded RJ 45): 1 x 10 Base-T / 100 Base-T
- USB: 1 x USB 2.0, max. 200 mA
- Serial Port 1/2: 2 combined ports: 2 x RS232, 2 x RS422/485
- Operating Temperature: -10 to +60˚ C
- Certifications: CE, UL 508, DNV
Panel 800 Version 6 Product Documentation - PDFs
Key Features
- Language support (English, Chinese, Portuguese, French, Italian, German, Spanish, and Korean)
- Alarming/Alert operations
- Recipe upload/download (saves in .csv format for offline backup or modification)
- Variety of Communication options
Technical Specs
- Display Colors: Color Transmissive TFT
- Realtime Clock: Battery-backed
- Programming port: USB, Ethernet
- Operating Temperature: 0 to 50˚ C
- Certifications: cULus, CE marked, C-Tick
- Communication Port: RS232 (9 pin D-shell), RS422/RS485 (Connector), Ethernet
PanelView Component Product Documentation - PDFs
Key Features
C400 & C600)
- Tag Reuse: Define tags once
- Global Objects: Link objects to multiple references
- Faceplates and AOI’s: Pre-built visualization components
- Scalability
- Single Development Environment
- Microsoft CE 6 Operating System
- Increased Memory: From 65MB to 512MB
- More Rugged Hardware
- Faster Processor: From 650MHz to 1 GHz
- Ethernet/IP
Technical Specs
(C400 & C600)
- Display Colors: Color Active Matrix (TFT 18-bit color) or Grayscale
- Operating System: Microsoft Windows CE 6.0 R3
- CPU: ARM 1.0 GHz
- RAM: 256 MB
- Internal Storage: 512 MB
- Ethernet: 10/100 Base-T Auto-MDI/MDI-X
- RS232: 1 x DB9
- Operating Temps: 0 to 55˚ C
- CPU: x86 – 1.0 GHz
- RAM: 512 MB DDR2-533 (chip-on-board) (4264MiB/s peak)
- Additional Communications available via add-on modules
- Certifications: cUL certified, UL listed, Class I, Div 2, Groups A,B,C,D; Class II, Div 2, Groups F,G, Class III, T4, Class I Zone 2 Group IIC
PanelView Plus 6 Product Documentation - PDFs
Key Benefits
- 5-Color LED Backlight
- High Contrast
- Touchscreen Option
- Alarm Handling
- Recipe Functions
- Power Over Serial
- 20-Button Bezel Option
- Object Library
- Build Your Own Objects
- Free Software
Technical Specs
- Display Colors Monochrome or TFT Color
- Built-in RJ12 Serial Communications Port (RS-232)
- 15-Pin D-sub Serial Communications Port (RS-232, RS-485/422)
- User Memory in 768KB, 1792KB, 3276KB
- Up to 999 Screens
- 5.0 VDC or 12/24 Input Voltage (model dependent)
- Operating Temps: -20 to 60˚ C
- Power Consumption 2W or 4.5W (model dependent)
- Certifications: CE, UL508, CUL, CSA
C-More Micro Product Documentation - PDFs
Key Features
- TFT Screens in All Sizes
- Wide Viewing Angle
- High Resolution
- 26 – 82 MB Standard Memory
- Standard USB Flash Drives
- Data Logging
- Alarm/Message Logging
- Recipe Functions
- Floating Point Support
- Password Protection
- Import/Export of Databases
- Email Capability
- Remote HMI App
- Project Simulator
Technical Specs
- Display Colors Grayscale or TFT Color
- 12 – 24 VDC Powered, 110 VAC Power
- Control Element: Touch
- Serial PLC Port: RS-232/422/485
- 15-Pin D-sub Serial Port (female)
- HDMI Port Out
- User Memory in SDRAM 32 MB or 64 MB
- Up to 999 Screens
- 5.0 VDC or 12/24 Input Voltage (model dependent)
- Operating Temps: 0 to 50˚ C
- Power Consumption 2W or 4.5W (model dependent)
- Built-in Memory Card Slots: SD
- Certifications: CE, UL508, CUL, CSA
C-More Base & Full Product Documentation - PDFs
Key Features
- RJ45 Ethernet Connections
- User Memory ranges from 512KB to 1MB
- Operates on WinCC Basic (TIA Portal)
- Recipe View Capabilities
- Archiving via USB Stick
- Versions for PROFIBUS and PROFINET
- Paperless Printing in PDF/HTML Formats
Technical Specs
- Display Colors Monochrome, Grayscale, and TFT Color Displays
- 10 MB Memory
- Tags: 800
- Recipes: 256 KB
- 10 Online Languages
- Interfaces include PROFINET or PROFIBUS, USB
- Multimedia: Buzzer
- Archiving: via USB, 2 archive max., 10 tags, .txt format
- Certifications: CE, UL
Basic Product Documentation - PDFs
Key Features
- Available with Touchscreen, Membrane Keypad, and Function Keys
- Interfaces include RJ45, RJ485/422, USB
- Two SD Card Slots on All Models
- Configure using WinCC Comfort (TIA Portal) or Higher
- Instant Diagnostic Display when coupled with SIMATIC Controllers
- SIMATIC Apps offer device connectivity from a smartphone, tablet, or computer
Technical Specs
- Display Colors Brilliant TFT Color
- 24 MB Memory
- Tags: 4,000
- Recipes: 2 MB (expandable)
- 32 Online Languages
- Interfaces include PROFINET and PROFIBUS, (2) USB, (2) SC card, Audio in/out
- Multimedia: media player, office viewer, PDF viewer, Web server, Web browser
- Archiving: via SD, USB, Network, 50 archive max., 2,000 tags, .txt, csv, rdb
- Certifications: CE, UL, ATEX, FM Class 1, Div. 2, Marine
Comfort Product Documentation - PDFs
Get a Quote within 48 Hours
Having extensive capabilities allows PanelShop.com to take on a wide variety of custom projects of all sizes. Whether a project started in our shop at the idea and development phase, or we take on a build-to-print job, the end result is always the same, top quality by the highest standards.

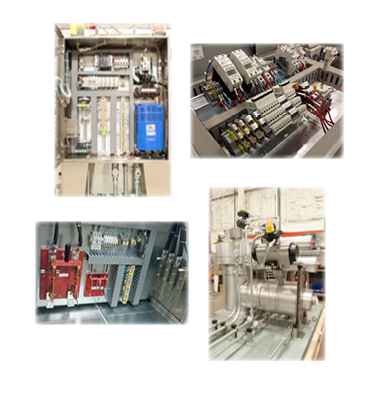

Recent Work
